MODEL :

제품선택
1.CONSTRUCTION :

2.THRMINAL BLOCK MATERIAL : CERAMIC


3.HEAD : MATERIAL :ALUMINUM ALLOY



              SURFACE COLOR : METALIC SILVER


4.ELEMENT : OTHER :  BARE WIRE :

5.PROTECTING TUBE DIAMETER (D) :OTHER:  Φ

6.PROTECTING TUBE MATELRIAL :    OTHER :

7.NIPPL SIZE(Dn) AND MAT'L : OTHER:

8.NIPPLE LENGTH (A) :    OTHER:

9.FLANGE SIZE AND MATERIAL : SIZE :  MAT'L :

11.TERMINAL BLOCK :

12.LENGTH : L :   mm

13.CABLE GLAND:

성 명



E-mail



    상호



첨부파일

        기본 5Mbyte

전화번호



문의항목



문의사항







THIS  DRAWING AND SPECIFICATIONS HEREIN ARE THE PROPERTY  OF THE HANSAENG INS. CO,LTD. AND MUST NOT BELOANED OR OTHERWISE TRANSFERRED TO ANY THIRD
PARTY OR REPRDDUCED, COPIED, OR USED
IN CONNECTION WITH THE MANUFACTURE, PURCHASE, OR SALE OF ITEMS WITHOUT WRITTEN CONSENT OF HANSAENG INS CO,LTD

 THIRD ANGLE PROJECTION




APPROVED

DATE

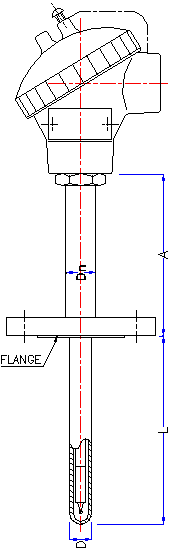

TEMPERATURE SENSOR

UNLESS OTHERWISE SPECIFIE
DECICIMAL DIMENSIONS ±0.20
ANGLE DIMENSIONS  ±1'
DIMENSIONS ARE IN MILLI METER

 CHECKED



DWG, NO : HS-012

 DESIGNED



 DRAWN   S. Y. KIM



SCALE N/S

     WT

SHEET  DF
